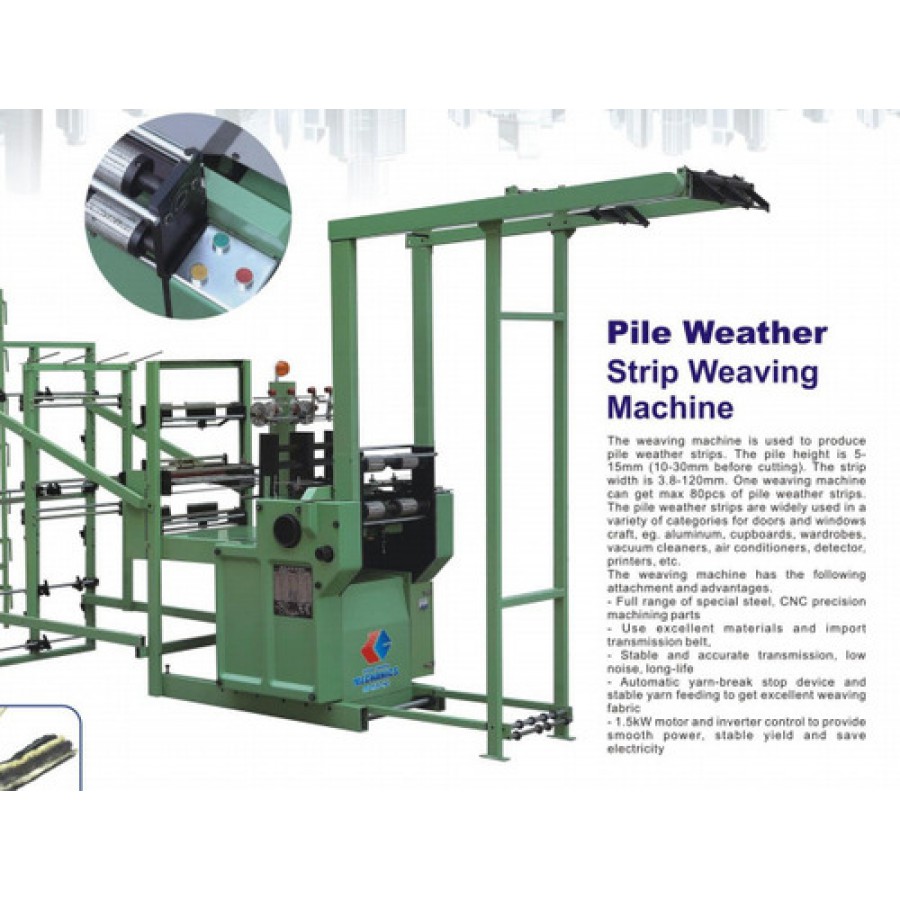

CNC Belt Weaving Looms (Strip Weaving) With Set Of 0.4 KW Servo Motor
CNC Belt Weaving Looms (Strip Weaving) With Set Of 0.4 KW Servo Motor
Zhou Chuang Machinery Factory
Main improvements:
212K CNC weaving machine added 2 sets of 0.4 KW servo motor, automatic control of wool height, can independently control and simultaneously produce 2 specifications of wool height. A 1KW servo belt motor is added, which can automatically control the density of the belt. A 2kw servo main motor was added. Add servo drive and central integrated control computer. Central integrated computer can detect functions: weaving meters, fault stop statistics, density control, wool height independent control, speed control, wool over tight stop, weft break stop, pull belt nin wheel fault stop, wool over send stop, warp break stop. Touch screen electric control. No need to change the weft density teeth and hair height teeth, input the diameter from the touch screen, input the required wool height numbers, input the required density numbers, reduce the replacement time for workers to find gear. Daily production quantities can be displayed from the touch screen. Increased automation, making it easy for new workers to operate machinery.
Production capacity for Model 212K /Model 212K CNC
Width 7mm base production speed 4 belts per machine *18pcs*0.5m/min=2160m/hour
Width 5mm base production speed 4 belts per machine *26pcs/belt*0.5m/min=3120m/hour
