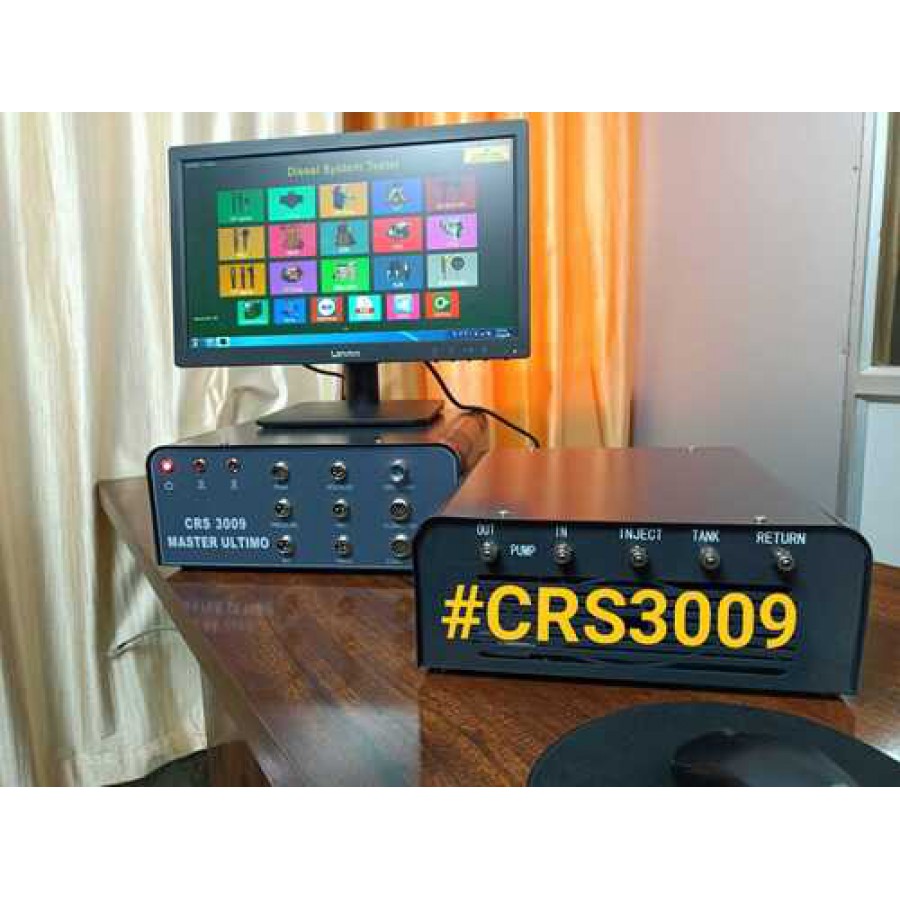

CRS3009 Ultimo Advanced CRDI Controller
CRS3009 Ultimo Advanced CRDI Controller
TECHNO INDIA
Advanced crdi controller suitable for all kind of test bench
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;
3. More than 3000 kinds of injector data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11. Frequency converter inside to keep the RPM.
Main Features
1.Test injector brands: BOSCH, SIEMENS, DELPHI, DENSO. Piezo injector testing.
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. Injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring, automatic testing and detection.
6. more than 3000 pieces of injector Data can be searched and saved.
TECHNICAL PARAMETER
1. Output power: 1.5KW
2. Power voltage: 220V 1phase
3. Motor speed: 0-3000RPM
4. Oil pressure: 0-2000bar
5. Flow measure range: 0-600ml/1000times
6. Flow measurement accuracy: 0.1ml
7. Temperature control range: 40+-2
