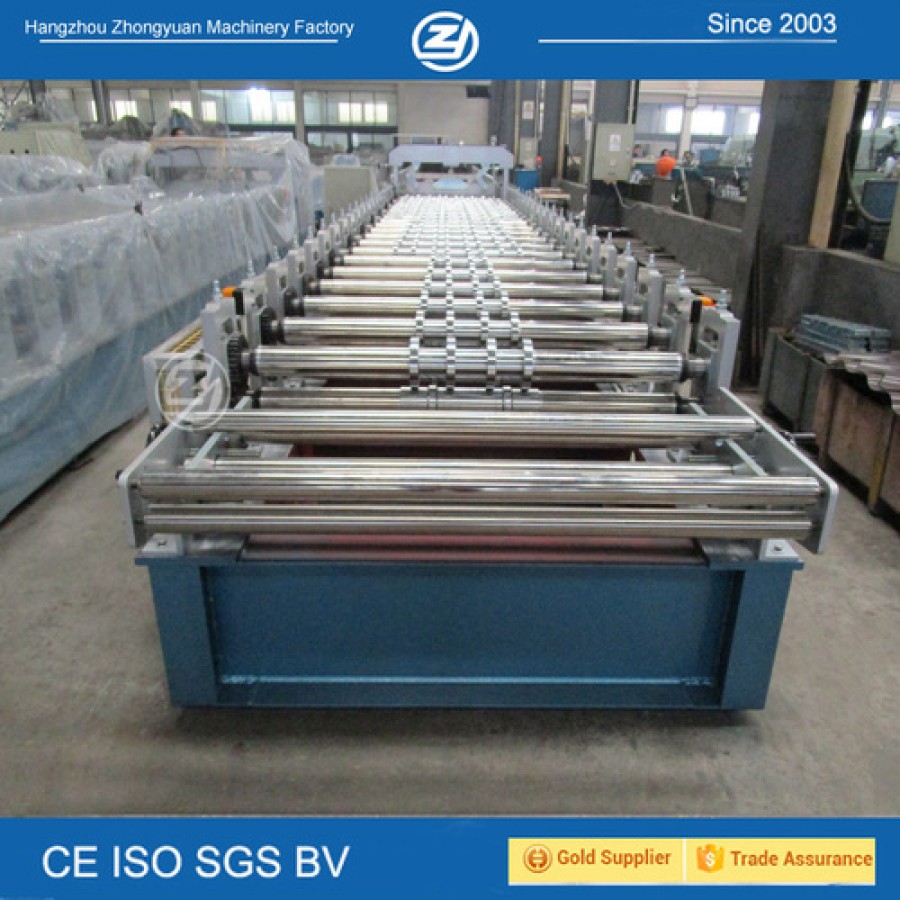

Hign Quality Coil Width 1220mm Metal Roof Roll Forming Machine

By HANGZHOU ZHONGYUAN MACHINERY FACTORY

HANGZHOU ZHONGYUAN MACHINERY FACTORY

China

We are manufacturer for metal roll forming machine since 2003. Good quality and reasonable rate for our customers. 1.Zhongyuan is a from raw material to the final high-precision forming machine.All are done in our factory. Your machine quality and delivery time can be controlled here if you choose us. 2.With technical support by our 20 years experienced engineers and technicians, you can get our suggestion and solution within 24 hours. 3.You can get guarantee lifetime services for our machines. 4.Simple to install and easy to maintain. >> Our machines are well installed and tested before delivery. You only need to connect some tubes and wires in your factory. Video and manual will show you how to do. >> Our experience technicians can go to your factory and train your workers. >> We have exported 85 sets machines to India since 2008. You can trust our experience and solution for your deal between us.

Other Details

ESTD. From

2003

Number Of Employees

Annual Turnover

Rs 180000000 Lakhs

We manufacture, export, distribute, trade and supply High Quality Coil Width 1220mm Metal Roof Roll Forming Machine to our clients in Hangzhou, Zhejiang, China.

Machine spec.
1. Size: about 10*1.7*1.6m (L*W*H)
2. Weight: About 9ton
3. Color: Make-to-order
4. Forming Speed: 20-25m/min.
5. Power : 415V/3Phase/ 50Hz
6. Main motor power: 7.5Kw(Depend on final design)

Raw Material:
1. Material: color steel sheet
2. Yield strength: 235Mpa
3. Thickness: 0.3-0.7mm

Machine components:
Decoiler (manual decoiler and hydraulic decoiler for option) 1 set
Feeding & guiding device 1 set
Main roll forming machine 1 set
Hydraulic cutting system 1 set
Controlling system 1 set
Run out table (auto. Stacker for option) 2 pcs

Components spec.:
1. Decoiler Max. Capacity: 5000kgs
2. Hydraulic station power: About 2.2Kw (Depend on final design)
3. Control system: Mitsubishi PLC with touch screen
4. Cutting length: Cut-to-length

Machine material
1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.

Price Range

22000.00 - 46000.00 USD ($) (Approx.)

Minimum Order Quantity

Unit of Measure

Set/Sets

FOB Port

Ningbo,china

Payment Terms

Letter of Credit (L/C), Telegraphic Transfer (T/T)

Supply Ability

10 Per Month

Delivery Time

60 Days

Packaging Details

1. One 40feet container for loading one set machine with decoiler. 2. Main machine body and decoiler is load naked (tighten to container with steel wire rope). 3. Spare parts and operating tools are loading in tooling box.

Main Export Market(s)

Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Africa

Main Domestic Market

All India

Certifications

CE,SGS,ISO
