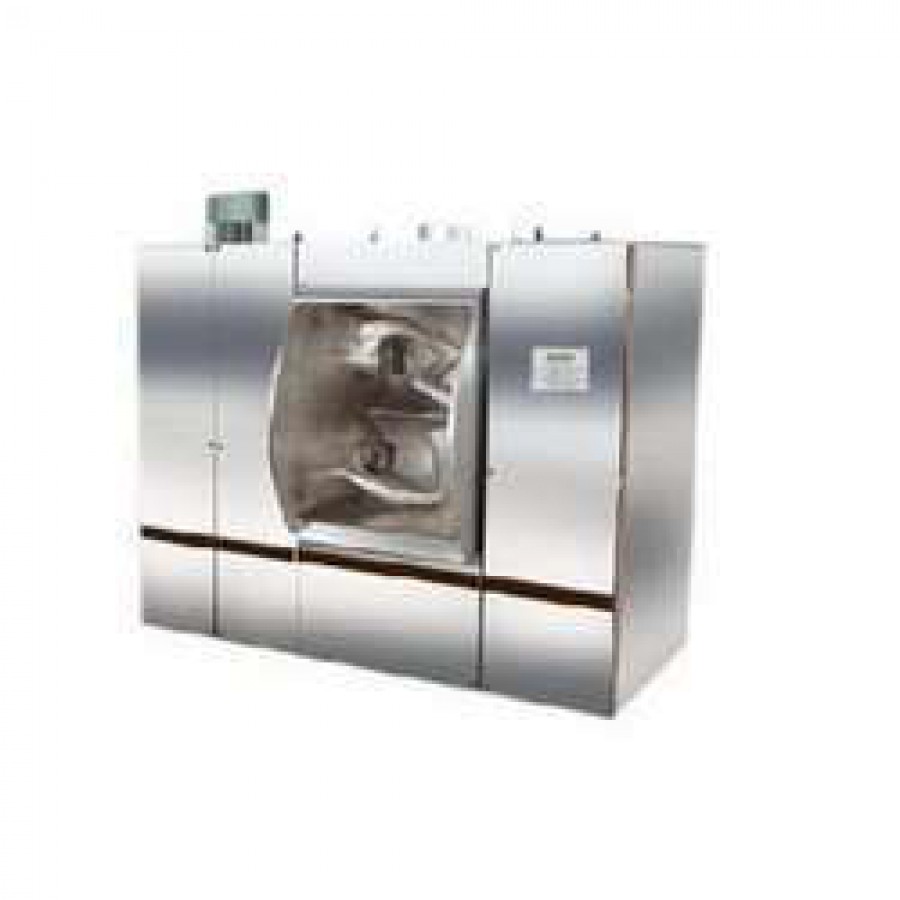

Horizontal Dough Mixtures

By ULTRA WORLDWIDE PVT. LTD.

95000.00

ULTRA WORLDWIDE PVT. LTD.

India

Ultra Worldwide Pvt. Ltd. Since we, Ultra Worldwide Pvt. Ltd., started conducting business in the year 1995, we have gained a solid reputation in the market by presenting a wide variety of products & services. We have been presenting a distinctive assortment of products as a manufacturer, supplier and exporter to the customers. Vertical Packaging Machine, Commercial Water Treatment Plant, SCM Sliding Table Panel Saw Cutting Machine, Horizontal Packaging Machine, and many more products are included in our collection. Only the finest grade of raw materials are utilized to manufacture our products. We also function as a service provider and offer excellent services like Biscuit Packing Machine Consultancy Services, Biscuit Stacking Consultancy Services, Biscuit Conveyor Consultancy Services, and many others. Our vision is to establish ourselves as a premier, trustworthy exporter of top-notch turnkey engin

Other Details

ESTD. From

1995

Number Of Employees

Annual Turnover

Rs 15 Crores

GST/VAT/Tin No.

27AAACU3383M1ZX

With enriched industrial experience and knowledge, we are exporting, manufacturing and supplying an excellent Horizontal Dough Mixer Mumbai, Maharashtra, India with Extra heavy duty Double sigma arm type with Capacity 400kg flour plus other Ingredients.

Specifications:

Model
UW3
UW 4
UW 5

Dough Capacity
525 kg
700 kg
875 kg

Main Drive Motor Rating
40 H.P.
50 H.P.
60 H.P.

Tilting Motor Rating
3 H.P.
5 H.P.
5 H.P.

Gearbox for Main Drive Motor

Imported Bevel
Helical Reduction type

Imported Bevel
Helical Reduction type

Imported Bevel
Helical Reduction type

Gearbox for Tilting Drive Motor
ISI Mark Worm
Reduction type

ISI Mark Worm
Reduction type

ISI Mark Worm
Reduction type

Weight of Machine
4500 kg
5700 kg
7200 kg

Dimensions in mm (LXWXH)
3100X1245 X2540
3182X1372X2743
3264X1448X2840

Heavy duty, Robust construction Horizontal Sigma Arm type Batch Mixer suitable for all kinds of Soft & Hard Doughs.

Double Sigma Arm principle ensure homogenous mixing.

Most suitable for Maries & Cracker type Hard Dough because of heavy construction.

Revolutionary centre tilting design with both side possibility for easy discharge. Absolutely no tilting stresses at an mechanism.

Single piece mixing bowl in Stainless Steel to prevent contamination.

Built in insulated cooling jacket to control Dough temperature and bowl surface temperature.

Bumper Guard to prevent damage from trolley
