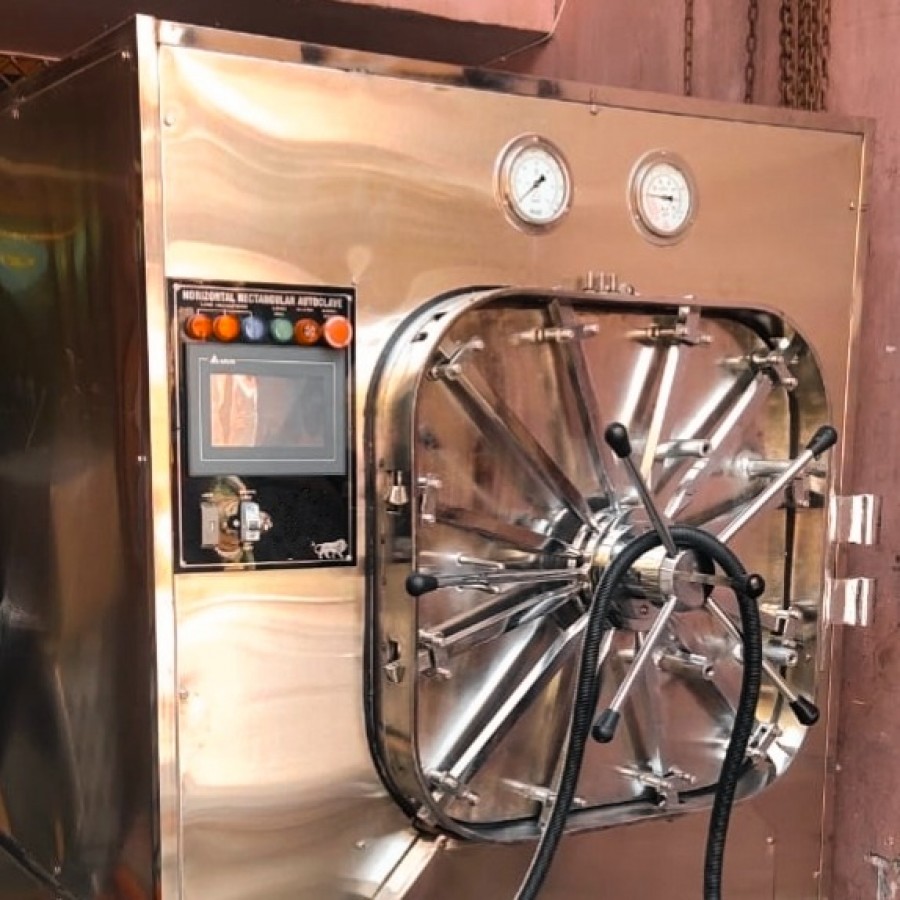

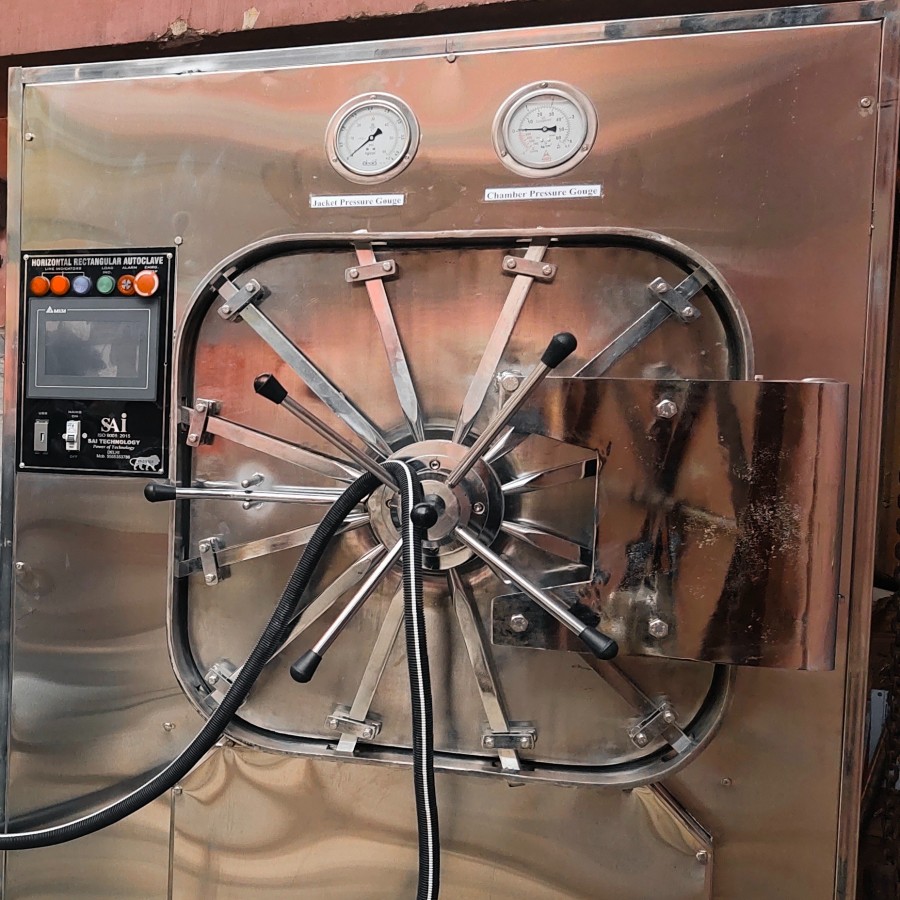

REW Horizontal Triple Walled Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms. • All ideal tool for Laboratories, hospitals, nursing home, R&D labs, etc. • The inner chamber, steam jacket, outer chamber, and boiler are made of heavy gauge stainless steel with leak-proof argon arc welding. • Lid is made of thick machined Mild Steel plate lined with stainless steel from inside • The space between the outer chamber and steam jacket is filled with Glass wool to minimize thermal losses. • Hydraulically tested to withstand 2.5 times the working pressure. • Steam boiler is fitted with water level indicator, pressure gauge, low water cut-off device, and automatic pressure control device. • Fitted with safety valve as a safety device. • Drain valve is fitted at the side bottom for easy draining/cleaning. • The unit is provided with a positive self-locking safety door which cannot be opened while the chamber is under pressure and disengages automatically when the chamber is exhausted. • This affords complete safety to the working personnel against the explosive opening. • Two separate valves are provided for evacuating steam from inner chamber and jackets as and when desired. • The chamber discharge line is fitted with a moisture trap to absorb the condensate automatically thus preventing moistening of the loaded material to be sterilized. • An automatic vacuum breaker is fitted to all “REW” units as a standard accessory, in order to break vacuum in case of steam condensation. • The flange immersion-type heating element made from very high-grade material provides the fast formation of pressure in the system and are protected through an electric low water level cut-off device. • All “REW” Sterilizers are provided with triple safety features, through a “PIEZOSTAT” (Automatic Pressure Control System) and a spring-loaded safety valve fitted to the boiler/steam generator. The chamber is fitted with spring-loaded safety valve and a dead weight release valve. • Highly accurate temperature indicator is fitted for monitoring temperature. • To work on 440Volts, 3phase, 50Hz AC supply.
