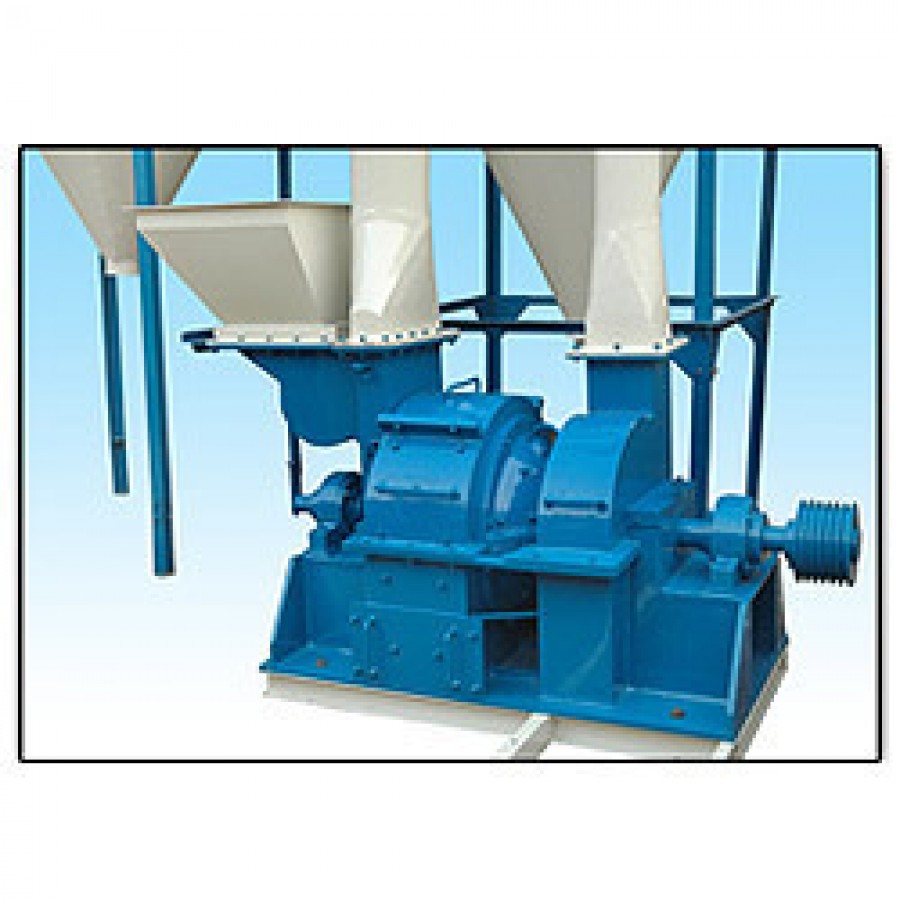

Impact Pulverizer
Impact Pulverizer
MITSUN ENGINEERING
The Impact Pulverizer consists of and encased rotor-carrying swing hammers, whizzer classifier for finesse regulation and pressure gradient creator mounted on a solid shaft. Raw material from the feed hopper enters manually or automatically roll feeder and as the feeder and as the feeder pockets rotate spills into the grinding chamber. The impact to the hammers on the feed material against the liner plates reduces it into fine powder. The ground material is carried towards the whizzer classifier for clarification and the over size particles are rejected by the finesse regulators (whizzer classifier) and returns to the grinding chamber for further grinding. Classified material is then conveyed into the cyclone for collection and bagging. A dust collector is provided in the system for ensuring dustless operation and no loss of ground powder.
The Impact Pulverizer meets most capacity requirements. It lend themselves to a wide degree of adjustment with finesse of the finished products ranging from about 60 mesh to bulk passing through 300 mesh depending to a considerable extent on the particular materials being handled. It combines Grinding, Classifying and conveying all in one single unit. It grinds with easy, economy and safety offering a wide range of particle sizing of any non-abrasive material, hard or soft from granular to finest dustup to 300 meshes.
